Swingarm Parts - Stay Arm Hardware - For Stock & Extended Arms

Parts for stock swingarms, and parts for installing extended arms all shown on this page.....
We also have an extensive selection of used stock arms and parts.....
If you don't see it here....... Just ask us!!

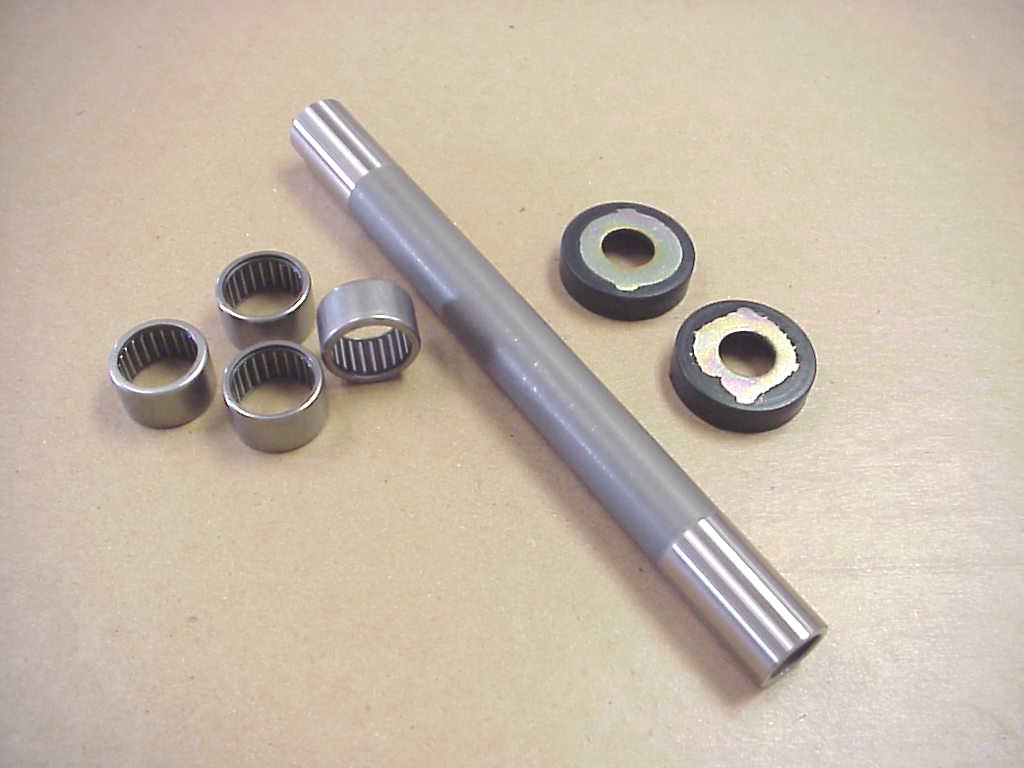

For 1977 to 1980 1000 models: New OEM Kawasaki swingarm parts.....
(Note: The 1977 KZ1000A models used a swingarm which had 1 of these needle bearings per side, the 1977 KZ1000B and 1978 thru 1980 swingarms, although outwardly identical, used 2 of these needle bearings per side. The shaft shown is for the 78 to 80 two bearing setup , but can be used on a single-bearing 77 arm.... Both shafts are no longer available new.
Other parts sold invividually:

Needle bearing           $13.49 ea.   In Stock
End cap seal                Discontinued / NLA
Center Shaft                  Discontinued / NLA

 Call for availability on good, used parts.... Call toll-free
                                                                      877-271-9292



When using an extended swingarm on your Kawasaki, keep in mind that the rear fender may also havc to be moved back an equal distance......

We make these simple adapter plates to accomplish this the easy way.......Threaded on one end where the fender threaded bosses used to be, and clear through on the other....

These plates space the rear chrome fender back just enough to make it all happen: Allowing for proper rear tire clearance, and keeping it looking right too......2 additional holes must also be drilled into the rear fender (easy - ask us for info)....

These will work on  1973 thru 1977 900's,  1977 thru 1978 "A" models, & 1977 thru 1980 "B" models......

Call for Info......... Toll-Free 877-271-9292

For extended swingarm installation on 1973 thru 1977 900 drum brake models.......

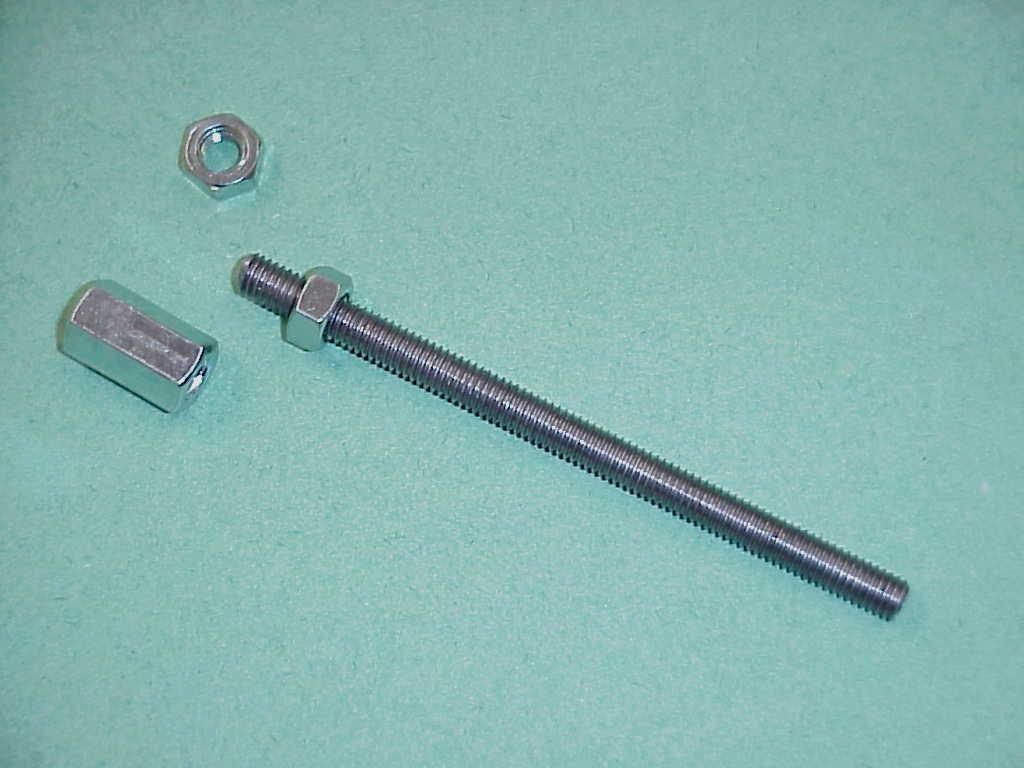

When putting an extended swingarm on a Z-1 or KZ900, the brake actuating rod has to be extended.... This simple extension section is the same metric thread as your stock rod and will go right on and lengthen it........

Includes rod extension, coupler, and locknuts.....Specify length of extension......

                                    $25.95

From In Stock to 1 Week Order....

...For rear applications on all KZ1000 models with extended swingarms.....


Replacing the  brake line seal washers  is highly recommended when installing these (or any) lines....

Sold as a set with the proper threaded fittings, or as individual pieces ......

          Hose only           $29.95 each  (up to +4 inch)
          Fittings                  $11.95 each  (2 required)
          Line Seal Washers  $1.45 each (4 required)
          Hose & Fittings      $58.95

In Stock at Redline Cycle



Extended drive chain - Or chain extension sections....

Extended arms need a longer drive chain than a stock application.....

If your chain is on the way out anyway, a  New Drve Chain
  is your best option. But if your chain is very good, we sell
chain extension sections that are compatible with the chains that we sell... Not all chains can be mated to each other

Chain extension sections for 2 inch over arms:

 For o-ring chains:  (w/1 extra master link) $34.95
                           (master link shown)
    For non-oring chains (w/1 extra master link $25.95

From In Stock to 3 Day Order....

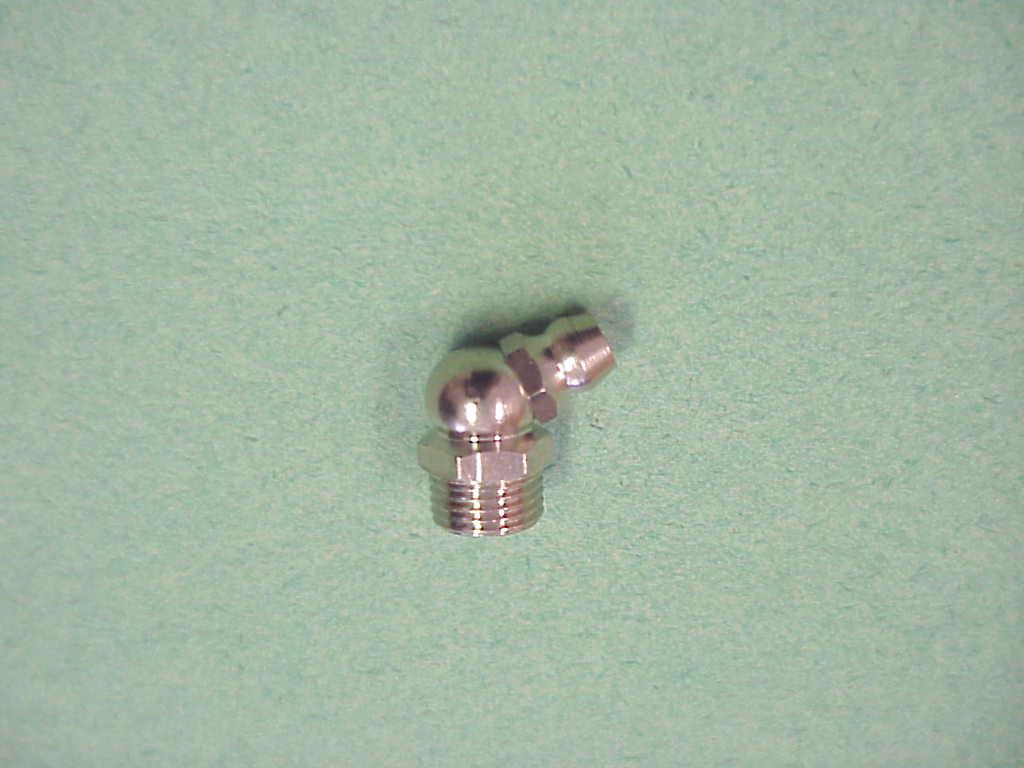

Kawasaki OEM NOS grease fitting for all stock swingarms on 1973 thru 1980 900 & 1000 models

                                   $7.99 each

     NLA New / Only Available Used

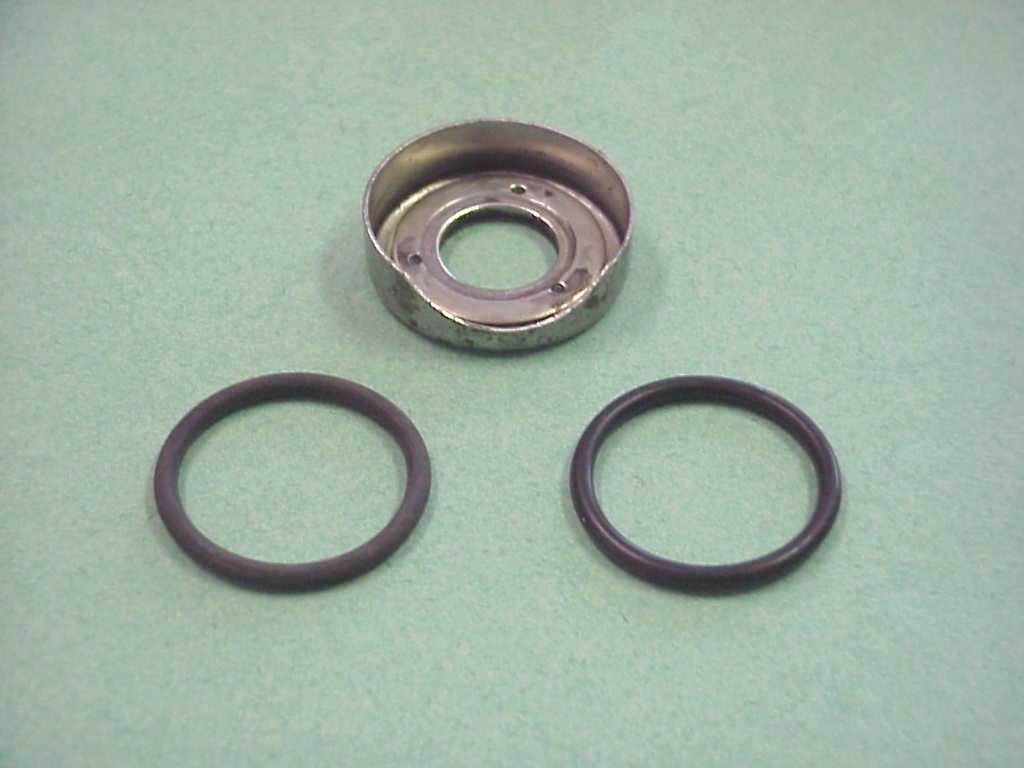

Kawasaki OEM swingarm end-cap o-rings for the 1973 thru 1977 900's.........


                                       $4.19 each



Limited Availability



............................. .........
New, repro stay bar hardware for drum & disc brake models ........
Left: 1973 thru 1977 900 drum brake set for stay bar        Imported from  Japan $28.95 per set
Right: 1976 thru 1980 disc brake set for caliper stay bar .......
Limited Availability
Universal chrome chainguard made  by MC Products -

Nicely chromed strap-style chainguard comes with misc. mounting brackets - The only way to get a chainguard on some custom swingarms..........

No longer manufactured, and very limited quantities......

                                                   NLA
