Rectifiers

Redline has always been known for troubleshooting and repairing charging systems, not only in
our Kaw 900 & 1000 specialty field, but all street bikes. In addition to the parts listed below, we also have
a huge supply of good used charging system parts on hand for many bikes......all tested and guaranteed
for a full year from the date of purchase........Just ask!!

If you own a 1976-77 Kz900, or an early 1977 KZ1000.....
Take a look at the bottom of this page......It might save your bike from a fire ......



Bring your old Kaw into the 21st century with this combo
voltage regulator and rectifier........
Very high quality - Made in Japan......This unit takes the place of the original rectifier and regulator.....Mounts to the original location of the voltage regulator, and with the provided adapter, plugs right in to the existing stock wiring on your bike......For all 1973 thru 1978 900 & 1000 models....
Far better than the OEM parts, this combo unit provides for higher charging at low rpm, and better regulation of the current.......
Provided with all necessary wiring and adapters for your specific model.........And, although they are new, we check each one for proper operation prior to shipping. Guaranteed for 1 year.......

Limited Availability, but usually in Stock
                                                   $189.95

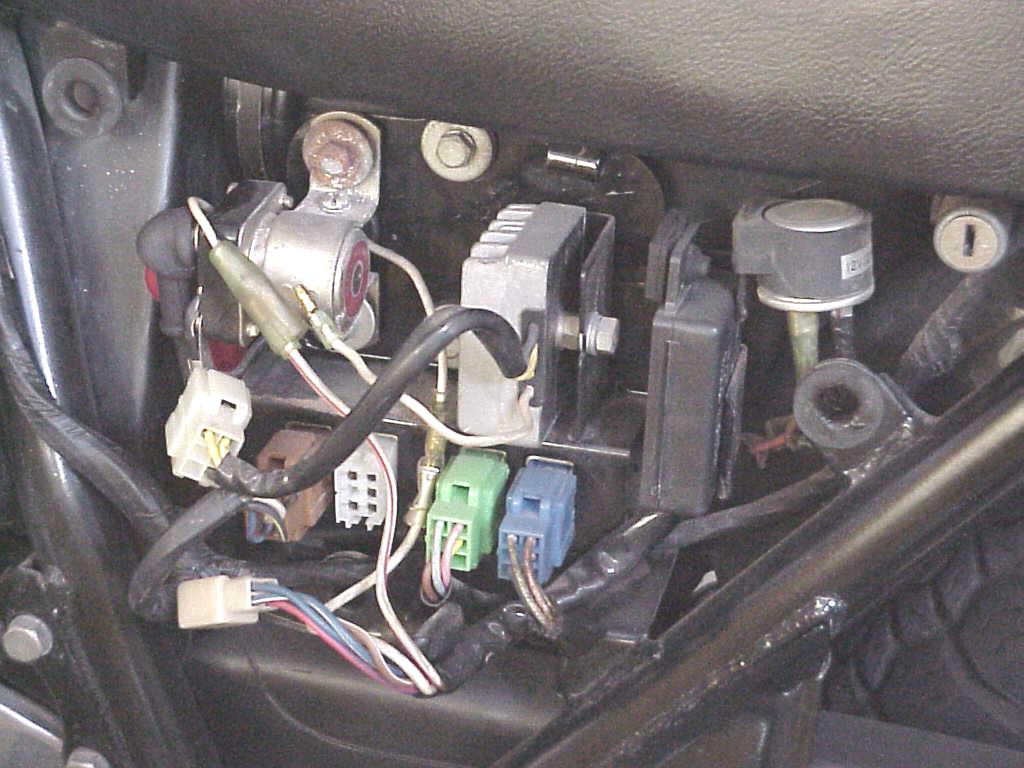

The 1976 and 1977 Kawasaki KZ900's, as well as some very early 1977 KZ1000's
were equipped with a silver, finned rectifier as shown in the pic at left. These units were defective,
and most of these units failed very early....most with the result of a simple battery discharge condition......

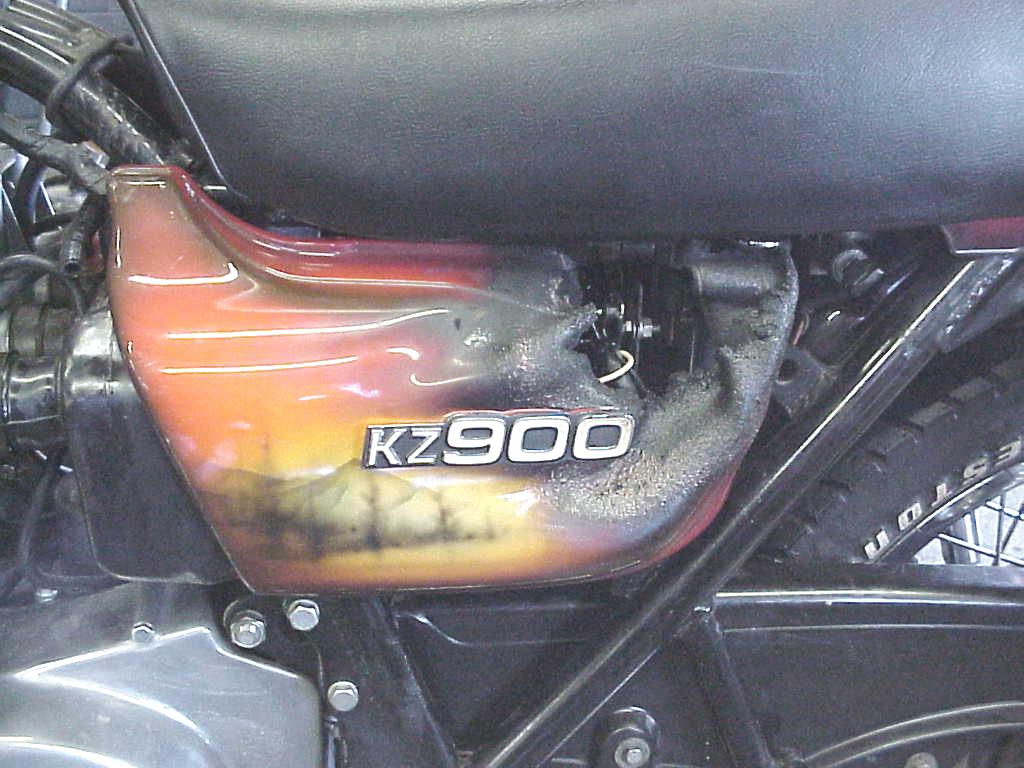

However, as seen in the pic at right, their failure can be worse than that!!
This KZ900 owner almost lost his bike when the defective unit caught on fire
while he was riding....... Given that the rectifier has a permanent hot (without the key even on)
amd a permanent ground, this could even happen while the bike is sitting in your garage. If you have a bike
so equipped, replace it, or at the very least disconnect it while the bike is sitting.....
