Swingarm Bearing Upgrade Kits - 900 Models

For all 1973 thru 1977 Z-1 / KZ900 models......

If you have your swingarm off and want to do something about those corroded, siezed up sleeves and bushings....
Dont bother replacing the original stuff......Upgrade to the later style needle bearing setup......

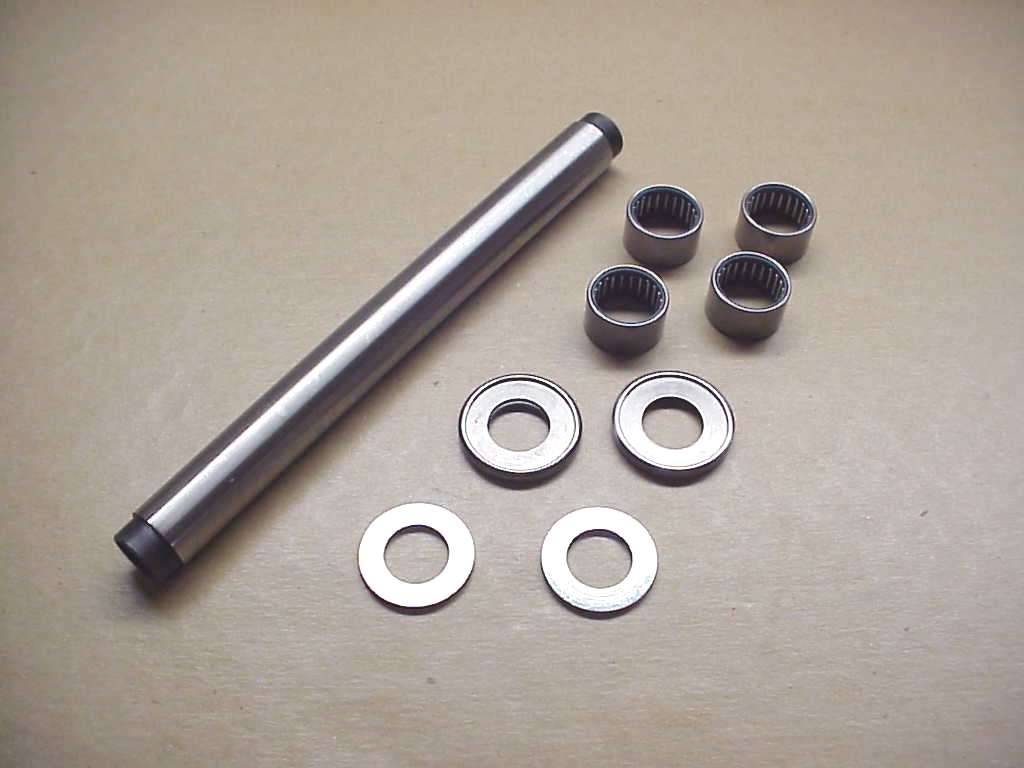

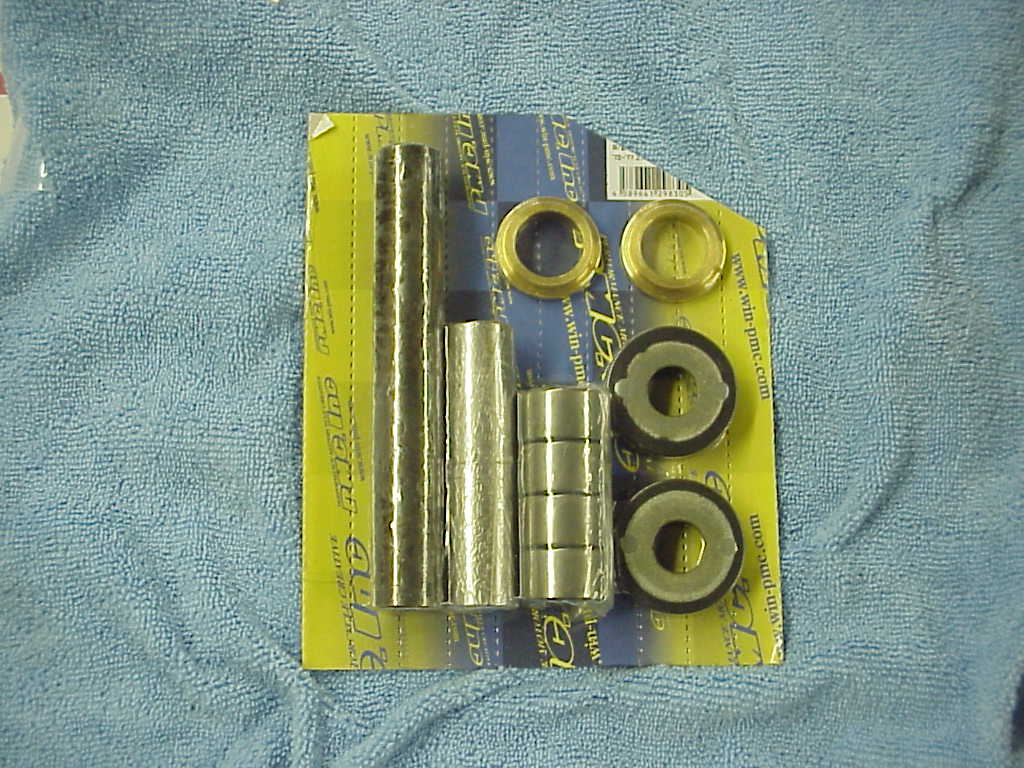

This Japanese-made, OEM quality aftermarket swingarm upgrade kit is made to order......Converts your 900 bushing-type pivot to a 2 bearing or 4 bearing arrangement.....

In Stock at Redline Cycle
                                           $129.95

What's inside your 900 swingarm?.......

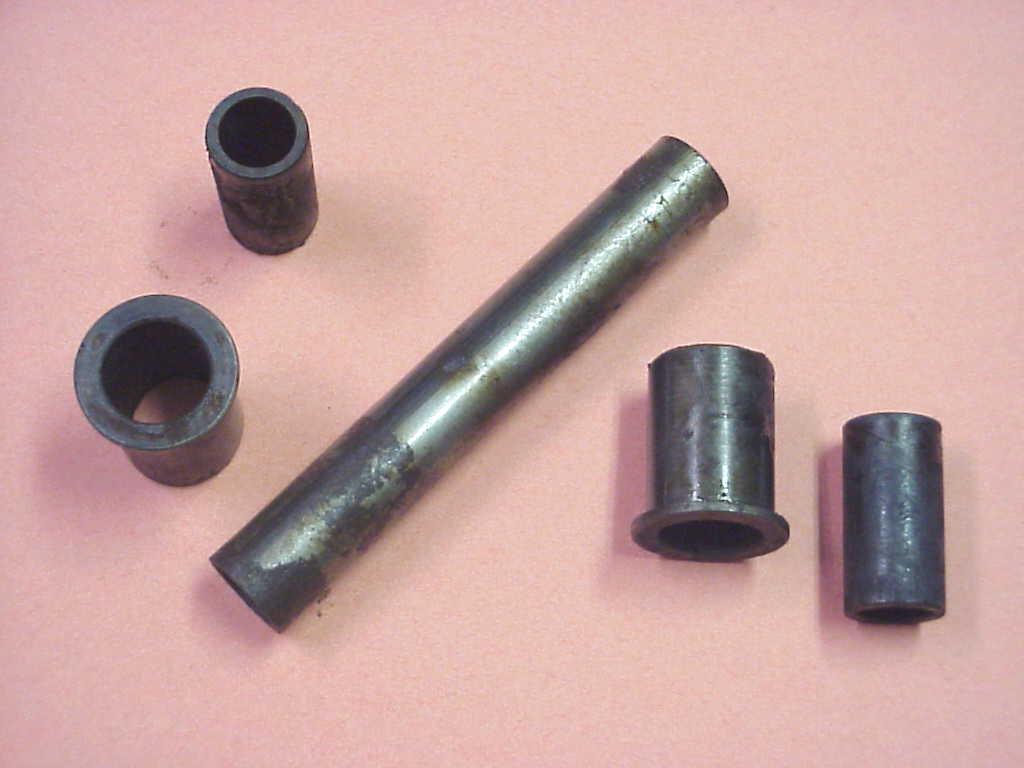

This rusty junk is what you'd typically pull out of a stock 1973 thru 1977 900 swingarm....
Most are not this bad, but few remain in working order,  the way they were intended to be.....
When new, the flanged bushings were pressed into the ends of the swingarm......
The bearing sleeves rotated inside them, and the center spacer maintained distance
between the sleeves....... Over time, the sleeves freeze up in the bushings and at that
point the arm is, for all practical purposes, without any pivot bearing at all.....
It took an hour with a sledgehammer and a blind-hole puller to get this junk out....
But once out, and the upgrade kit installed, you have a very nice setup....
WAY better than original.......
