Piston Kits - KZ1000 Drop-In - High & Standard Compression

2 different ways to freshen up you KZ1000 engine without having to bore the cylinders,
Or give your 900 engine some easy extra power without taking the bottom end apart....
.


Tighten up your KZ1000 engine ........

 High-quality forged pistons are standard 70mm bore / Drop in / No boring necessary for
all 1977 thru 1980 KZ1000 models......

Kit includes 4 pistons / 4 ring sets / 4 wristpins / 8 pin clips.....   $549.00
1  - .020 cylinder base gasket  included..........

Raises compression to 10.25 to 1 (from the stock 8.5 to 1)...Using standard .020 thick base gasket....
Optional compression ratios down to 9.5 to 1 using special  Base Gaskets .....

Reduce compression by using 2 - .020 cylinder base gaskets.......
Addl. base gasket - $9.95

Either our 1 piece or 2 piece Head Gaskets  can be used with this kit......

All parts shown are also available individually.......

These pistons can also be used in Z-1 / KZ900 cylinders (3mm / .120 overbore)


If you want to freshen up your  KZ1000 - And take a bunch of the wear out of that cylinder ....
But want to keep it as close to stock as possible......

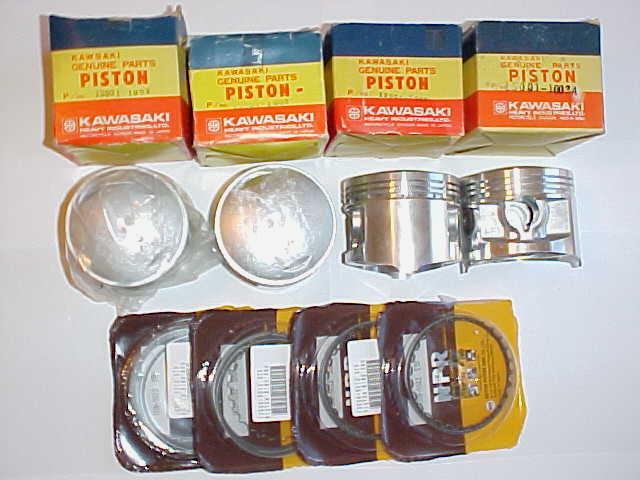

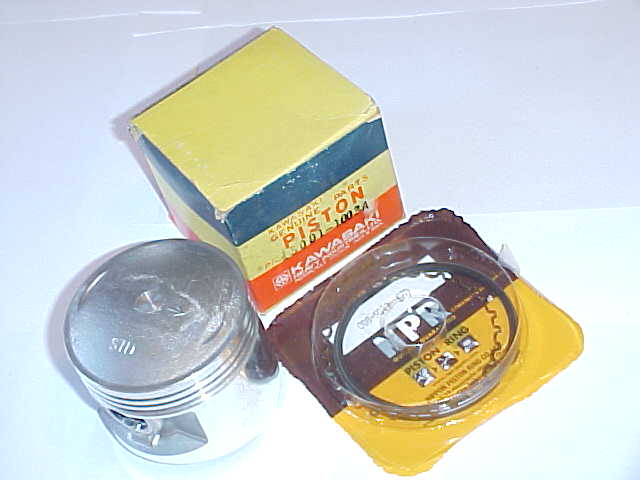

Kawasaki OEM / NOS STD (70mm / 1015cc) piston set for all 1977 thru 1980 1000 engines ....
Compression is the standard 8.5 to 1.....Clearance at .002.....
This set comes complete with rings & piston clips............
Pins are available seperately - If you can't use your existiong ones

(1 set currently available)............    $499.00 per set
