Engines - Rebuilt - Stock & Modified

This page last updated: Sept. 7, 2017:

For more info on buying / receiving our rebuilt engines:   Click Here

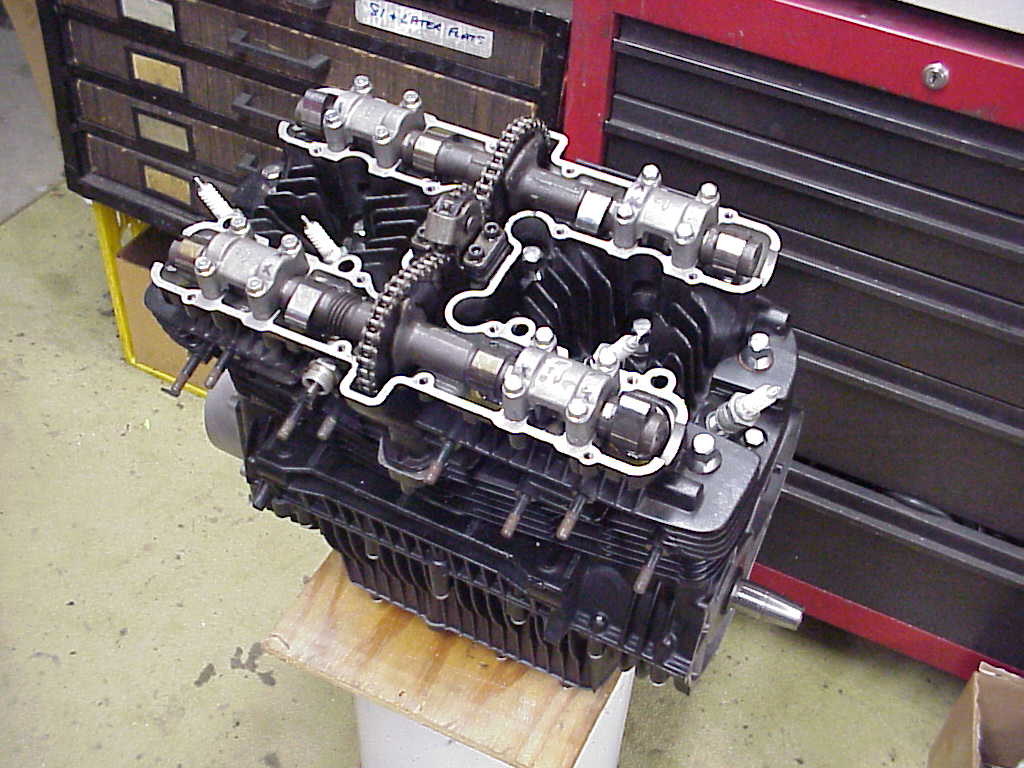

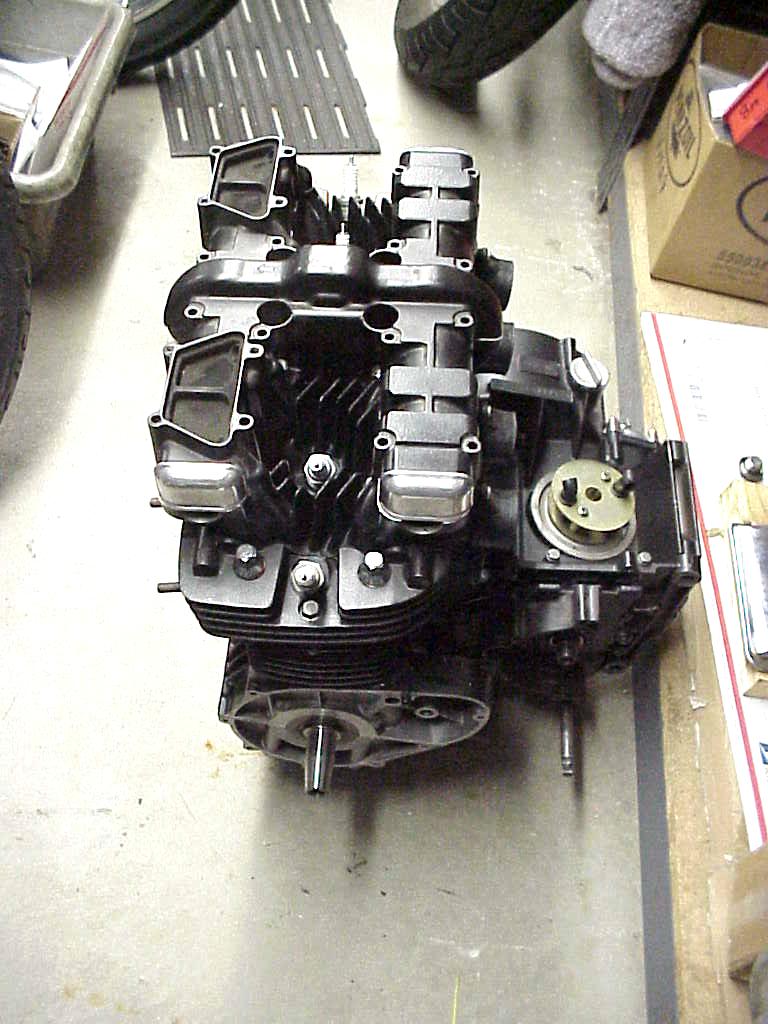

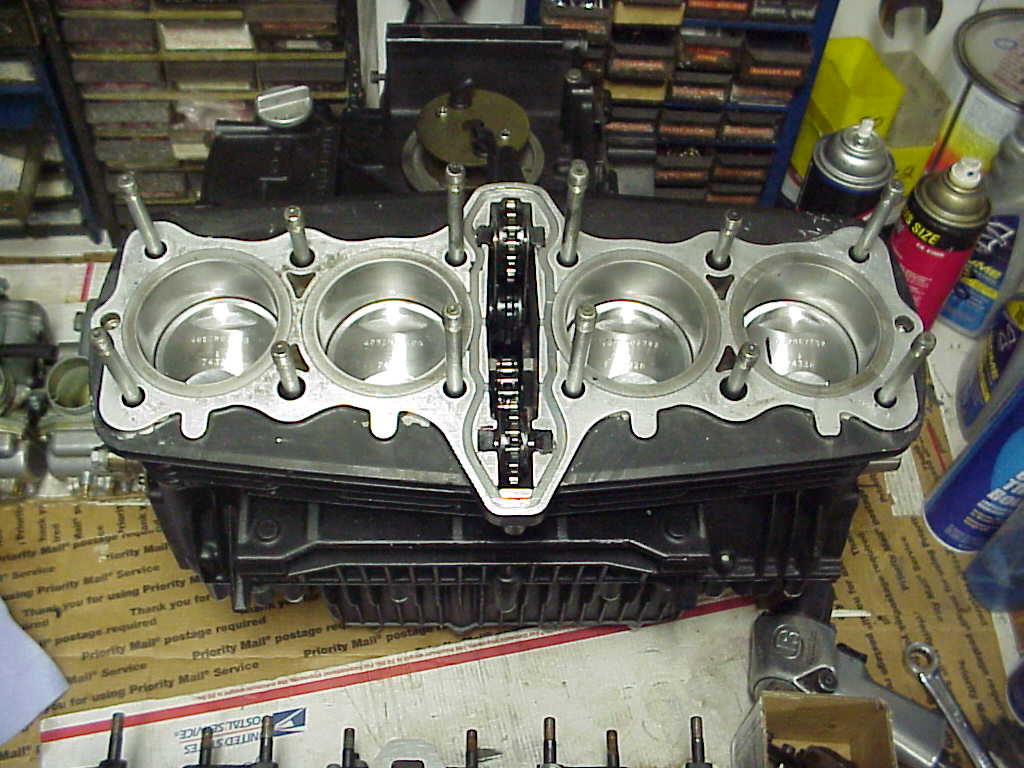

1980 KZ1000B4 Engine  /  Case #KZT00AE-097595  /
 NEW Forged 72mm (1075cc) pistons / 10.25 to 1 C.R. / Stock cams
A very strong running MKII engine, recently freshened up.........
The work on this engine included a complete bottom end rebuild April, 2017 /
Recent head removal and new 3 angle valve job /
HD cam chain  /  Grade 8 cam cap bolts /   Undercut 2nd & 5th gear set /
This engine has always been an outstanding runner for a stock-cam 1075.....
 A direct fit in all 1979 and 1980 Kawasaki 1000 chain drive models,
and will easily adapt to all 1973 thru 1978 900 and 1000 models.....
Sold without carbs / ignition / generator rotor & stator -

      Engine as shown without covers   $2695.00  No Longer Available
With black cam cover w/polished ends   +$95.00

Core engine required - Email us for details > jim@redlinecycle.com
or call 847-830-3973

More engines coming............

PIC OF ENGINE BELOW NOT YET AVAILABLE

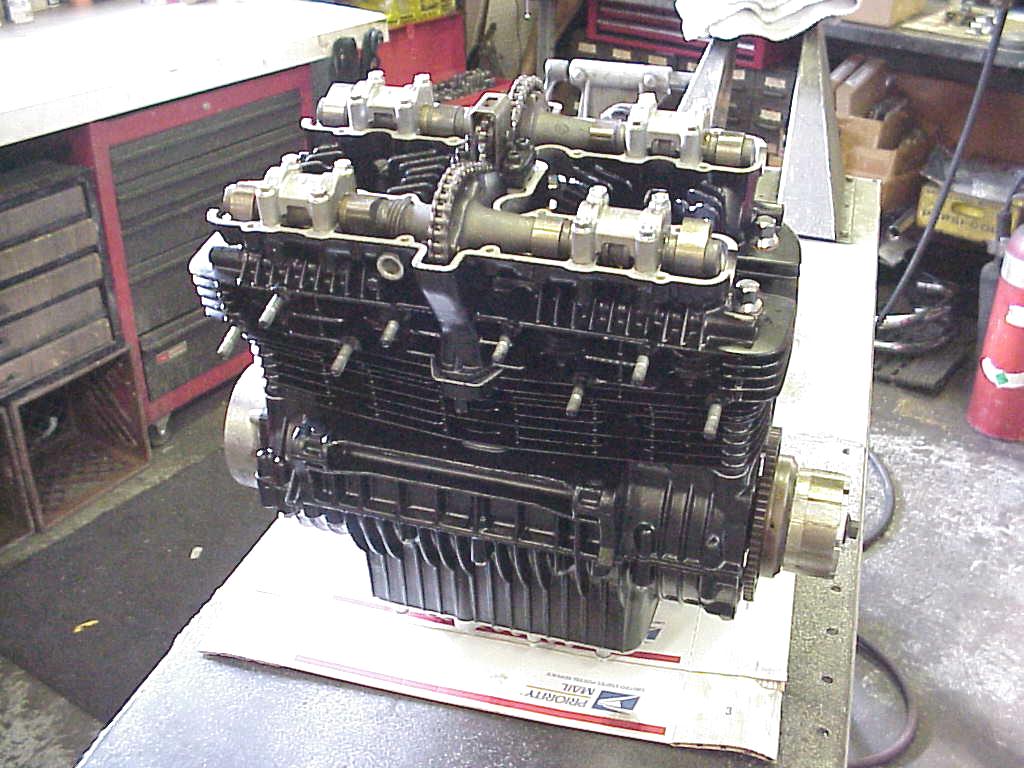

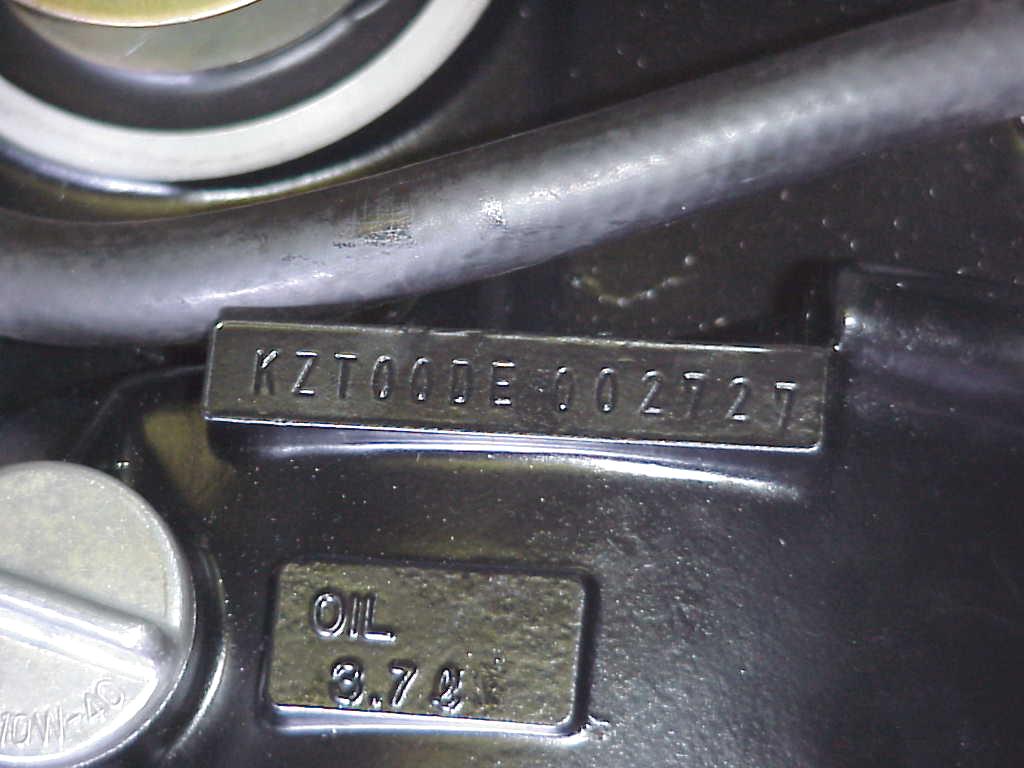

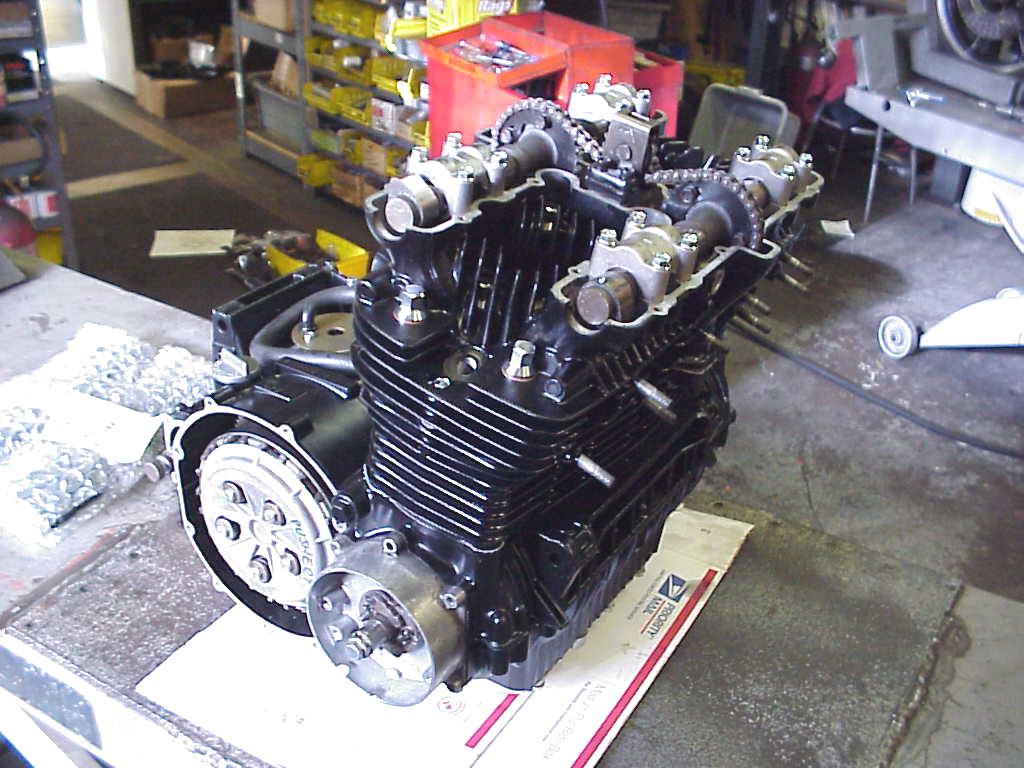

1978 KZ1000D / Z1-R engine / Case # KZT00DE-............. / Stock (1015cc) Pistons
Stock cams -

Comprehensive rebuild
The work on this engine included a complete top & bottom rebuild / Undercut 2nd & 5th gear set /
Welded crankshaft / All new engine hardware (Case bolts - Pan bolts) / Grade 8 cam cap bolts /
New HD cam chain with all new OEM camchain guides and rollers /
3 angle valve job with new valve seals /  Valves adjusted /
Our 50-50 clutch / Bearing clutch pusher / Overshift bushing /
Glass-bead blast finish
Engine delivered without covers / with all gaskets for cover mounting included..... $2900.00   SOLD
Requires a core engine in return at the price shown -


This engine is a direct fit in all 1973 thru 1978 Kawasaki 900 & 1000 models,
and can be adapted to fit all 1979 & 1980 1000 models
A 1979-1980 engine can also be built to these specs

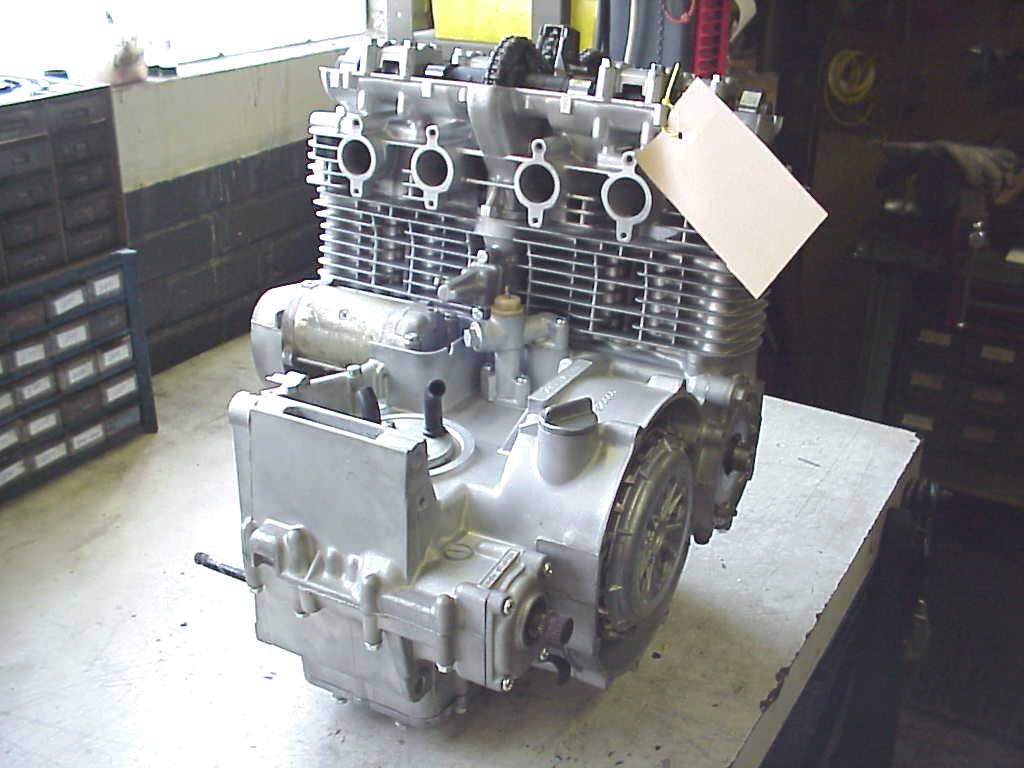

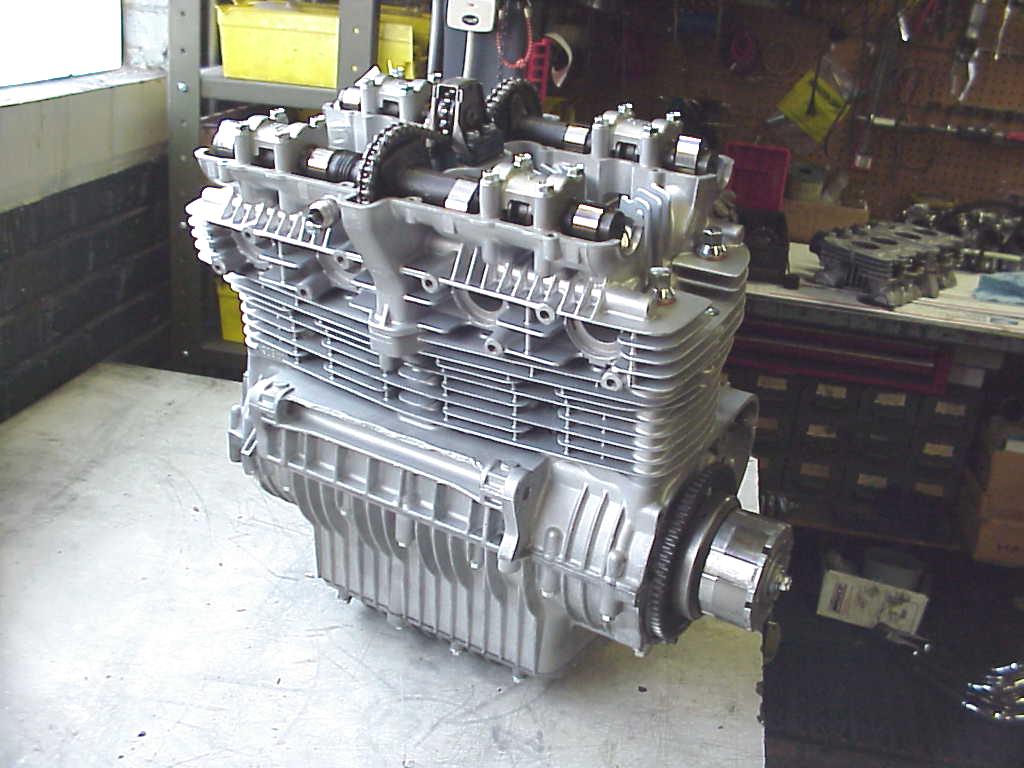

1976 KZ900 engine / Case #Z1E-123580 / 70mm (1015cc / OEM KZ1000 pistons)
Compression ratio  8.5 to 1 (stock)
The work on this engine included: A complete top & bottom rebuild /
KZ900 cylinder bored to 70mm (1000cc)......
 All new engine hardware (Case bolts - Pan bolts) / Grade 8 cam cap bolts /
New HD cam chain with all new camchain guides and rollers / New piston rings /
KZ1000 head - Upgrade to 8mm exhaust studs -
New 8mm  exhaust studs included with engine -
3 angle valve job with new valve seals /  Valves adjusted /
Single stage glass-bead blast finish
This engine is a direct fit in all 1973 thru 1978 Kawasaki 900 & 1000 models.....
Engine delivered without covers / with all gaskets for cover mounting included.....
Price shown requires core engine.....       $2100.00  - SOLD
We can build you a later type 1979-1980 engine to the same specs......




PIC OF ENGINE BELOW NOT YET AVAILABLE

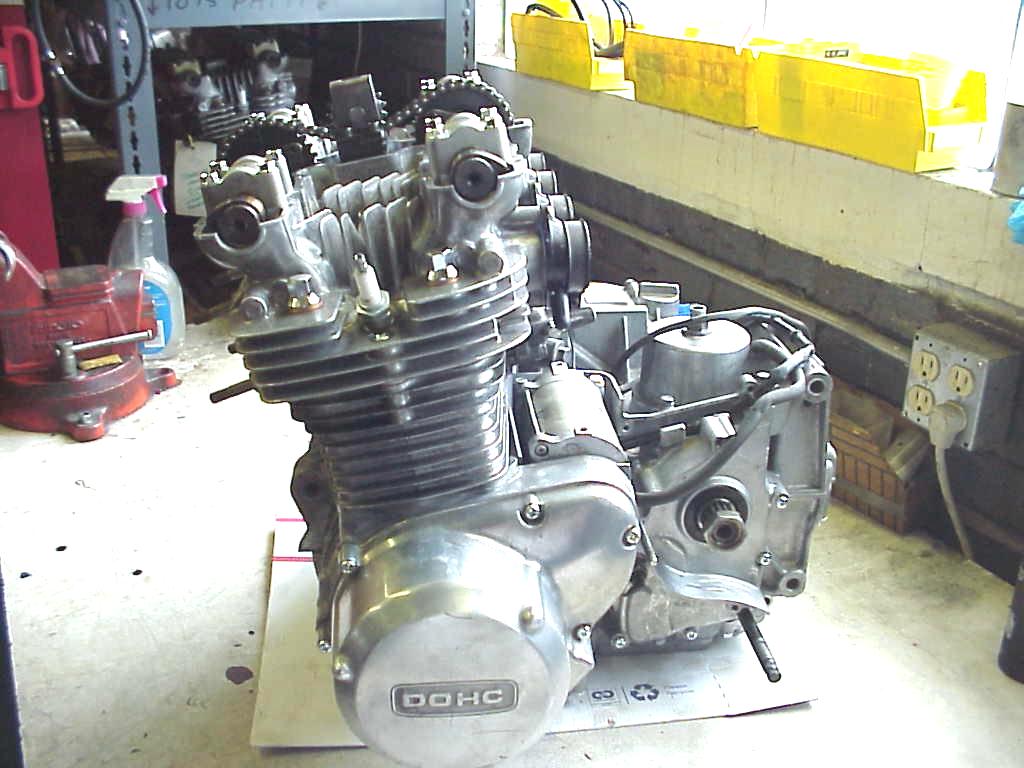

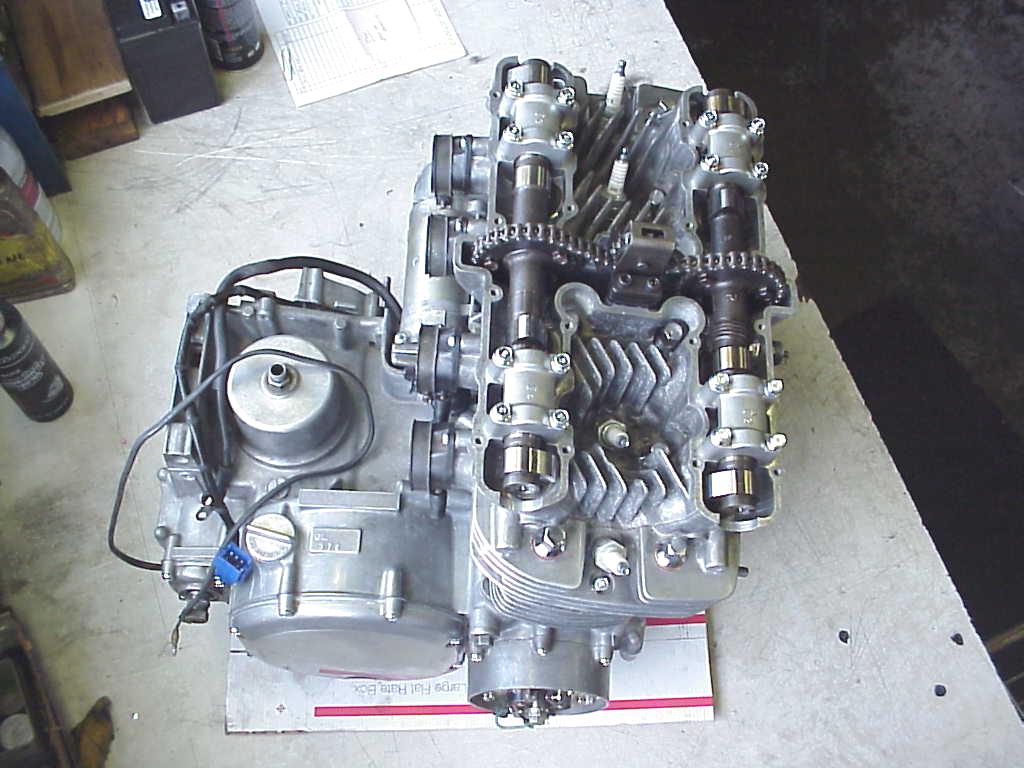

1978 Kawasaki KZ1000 - Stock 1015cc (KZT00AE-044241)
The work on this engine included a complete top & bottom rebuild..../
 All new engine hardware (Case bolts - Pan bolts) / Grade 8 cam cap bolts /
New HD cam chain  / New camchain guides & rollers /
Cylinders honed - New piston rings
3 angle valve job with new valve seals /  Valves adjusted /
Original aluminum finish......
Installed in one of our test bikes and driven as part of its final inspection....

With all engine covers mounted, starter, alternator, ready to run  $1850.00 SOLD
Requires core engine with all covers, starter, alternator, ignition
This engine is a direct fit in all 1973 thru 1978 Kawasaki 900 & 1000 models
                                   (TH)





PIC OF ENGINE BELOW NOT YET AVAILABLE

1977 Kawasaki KZ1000 - Stock 1015cc
Top end rebuild of a 1977 KZ1000 engine with 1000 original miles -
Was in storage for 30 years .....
The work on this engine included a complete top end rebuild /  Grade 8 cam cap bolts /
Stock cylinder honed and re-surfaced........
3 angle valve job with new valve seals /  Valves adjusted /
Original aluminum finish......
Installed in one of our test bikes and driven as part of its final inspection....
Complete with all engine covers, starter, point ignition, and alternator ....... /
Requires core engine with all covers & alternator
                                                                                                         $1775.00  SOLD
This engine is a direct fit in all 1973 thru 1978 Kawasaki 900 & 1000 models,




PIC OF ENGINE BELOW NOT YET AVAILABLE

1977 Kawasaki KZ1000 - Forged 1075cc Piston Kit
1977 KZ1000 engine /  / Forged 72mm (1075cc) Pistons / 9.75 to 1 C.R. / Stock cams
The work on this engine included a complete top & bottom rebuild /
Upgraded with 1978 welded crankshaft (taper-fit / keyless generator rotor) /
Undercut 2nd gear / 50-50 clutch / New forged pistons & rings / Compression ratio adjusted to 9.75 /
 All new engine hardware (Case bolts - Pan bolts) / Grade 8 cam cap bolts /
New HD cam chain  / New camchain guides & rollers /
3 angle valve job with new valve seals /  Valves adjusted /
/ 2 stage (brilliant) glass-bead blast finish.....
Covers / Starter / Alternator / Ignition not included.......
Includes all gaskets and seals to mount your engine covers.....
Requires core engine without covers, alternator, & ignition

This engine is a direct fit in all 1973 thru 1978 Kawasaki 900 & 1000 models... $2,900.00 SOLD

Another 1075 engine with the same specs now being built - Call for info.... toll-free 877-271-9292





PIC OF ENGINE BELOW NOT YET AVAILABLE

1977 Kawasaki KZ1000 - Stock 1015cc (KZT00AE-015058)
Top end rebuild of a 1977 KZ1000 engine -
Upgraded with 1978 welded crankshaft (taper-fit / keyless generator rotor) /
The work on this engine included a complete top end rebuild /
HD cam chain with all new camchain guides and rollers /
Stock cylinder honed / New piston rings.......
3 angle valve job with new valve seals /  Valves adjusted /
Original aluminum finish......
Installed in one of our test bikes and driven as part of its final inspection....
Includes engine covers, starter, point ignition, and alternator .......
Engine delivered with all gaskets & seals for engine cover installation
Requires core engine with all covers & alternator
                                                                                 $1775.00  SOLD

1978 Kawasaki KZ1000 - Stock 1015cc (KZT00AE-072426)
The work on this engine included a complete top & bottom rebuild..../
 All new engine hardware (Case bolts - Pan bolts) / Grade 8 cam cap bolts /
New HD cam chain  / New camchain guides & rollers /
Cylinders honed - New piston rings
3 angle valve job with new valve seals /  Valves adjusted /
Original aluminum finish......
Installed in one of our test bikes and driven as part of its final inspection....
Covers / Starter / Alternator / Ignition not included.......  $1775.00
Includes all gaskets and seals to mount your engine covers.....
Requires core engine without covers, alternator, & ignition      SOLD

With all engine covers mounted, starter, alternator, ready to run  $1985.00
Requires core engine with all covers, starter, alternator, ignition
This engine is a direct fit in all 1973 thru 1978 Kawasaki 900 & 1000 models

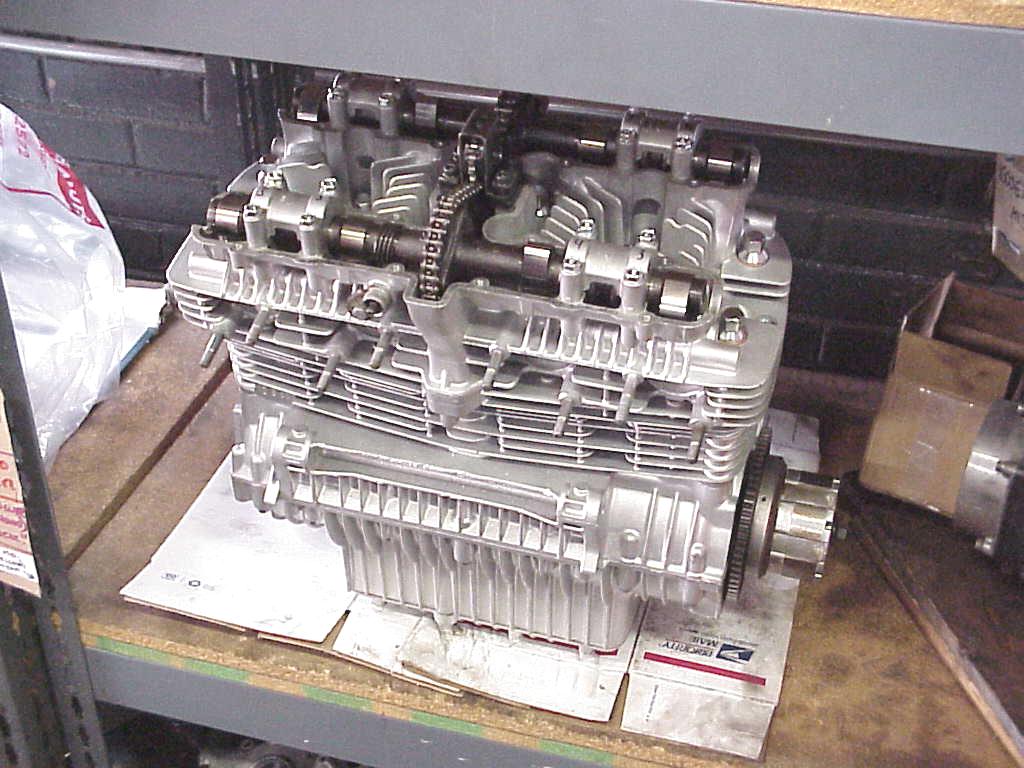

1978 KZ1000B engine / Case # KZT00AE-072825 / Stock OEM 70mm (1015cc) Pistons / Stock cams
The work on this engine included a complete top & bottom rebuild / Undercut 2nd & 5th gear set /
All new engine hardware (Case bolts - Pan bolts) / Grade 8 Cam cap bolts /
New HD cam chain with all new OEM camchain guides and rollers / New piston rings /
3 angle valve job with new valve seals / Valves adjusted /
2 stage (brilliant) glass-bead blast finish  $2,400.00 SOLD
This engine is a direct fit in all 1973 thru 1978 Kawasaki 900 & 1000 models.....
We can build you a later type 1979-1980 engine to the same specs......

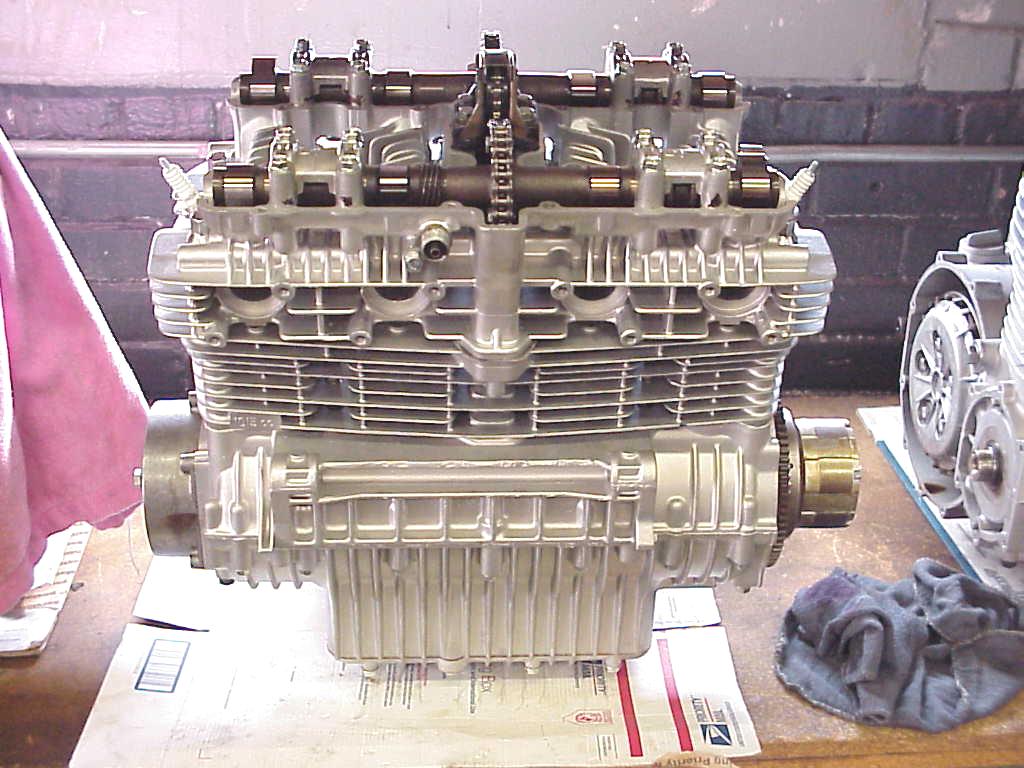

1976 KZ900 engine / Case # Z1E-104257 / Forged 72mm (1075cc) Pistons / 9.25 to 1 C.R. / Stock cams
The work on this engine included a complete top & bottom rebuild / Undercut 2nd & 5th gear set /
Welded crankshaft / All new engine hardware (Case bolts - Pan bolts) / Grade 8 cam cap bolts /
New HD cam chain with all new OEM camchain guides and rollers / New piston rings /
3 angle valve job with new valve seals / Exhaust studs modified to 8mm / Valves adjusted /
50-50 clutch / 2 stage (brilliant) glass-bead blast finish
This engine is a direct fit in all 1973 thru 1978 Kawasaki 900 & 1000 models... $2,900.00
         We can build you a later type 1979-1980 engine to the same specs......SOLD



1977 KZ1000 engine / Case # KZT00AE-027853 / Forged 72mm (1075cc) Pistons / 9.75 to 1 C.R. / Stock cams
The work on this engine included a complete top & bottom rebuild /
 All new engine hardware (Case bolts - Pan bolts) / Grade 8 cam cap bolts /
New HD cam chain  / New piston rings / Compression ratio adjusted to 9.75 /
3 angle valve job with new valve seals /  Valves adjusted /
/ 2 stage (brilliant) glass-bead blast finish
This engine is a direct fit in all 1973 thru 1978 Kawasaki 900 & 1000 models... $2,500.00
         We can build you a later type 1979-1980 engine to the same specs......     SOLD

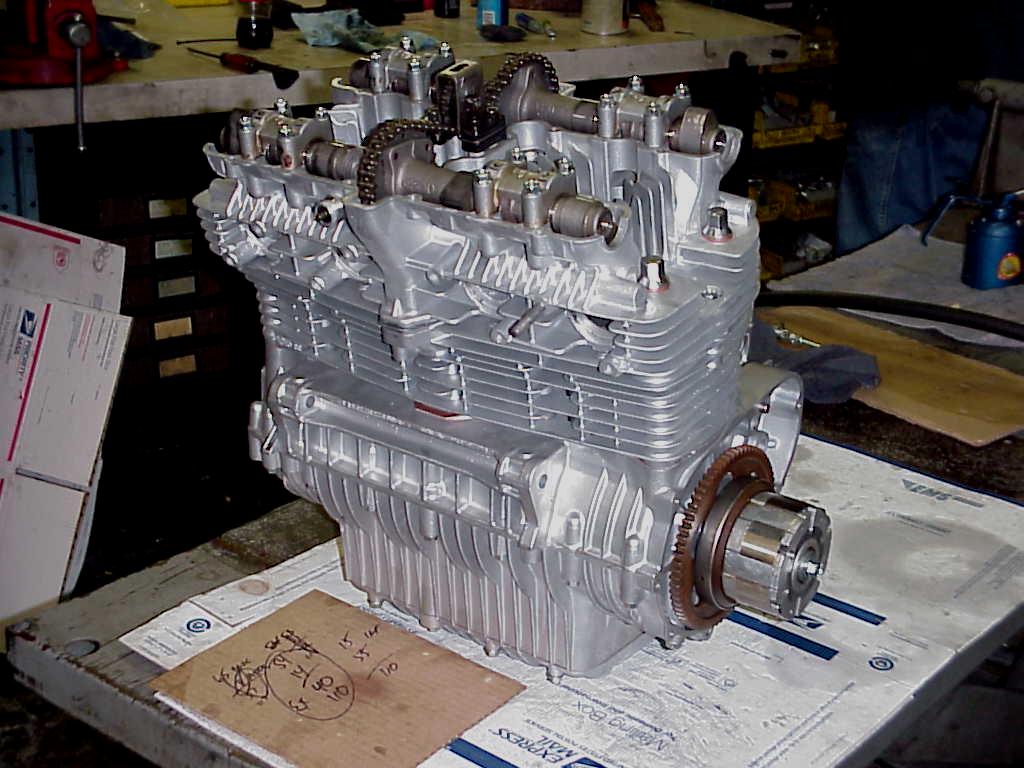

1977 KZ1000 Engine  /  Case #KZT00AE-017929  / 72mm (1075cc)
Compression ratio 9.75 to 1
The work on this engine included a complete top & bottom rebuild /
 Welded crankshaft / All new engine hardware (Case bolts - Pan bolts) / Grade 8 cam cap bolts /
New HD cam chain with all new OEM camchain guides and rollers / Forged 72mm piston kit /
3 angle valve job with new valve seals / .400 lift high-perf cams - Degreed to 110 LC / Perf. valve springs /
Cylinder head port-matched for Mikuni RS carb option /
Valves adjusted / New 50-50 clutch / High-strength cylinder studs / Two stage (brilliant) glass-bead blast finish /
This engine is a direct fit in all 1973 thru 1978 Kawasaki 900 & 1000  models,
                                                                                        $3685.00  SOLD
We can build you a later type 1979-1980 engine to the same specs......
